Positive form inserts XDGT
• D57
• inch
• WKP35S
• Tigertec Silver
• cutting edge major radius=25,4mm
Positive form inserts XDGT4009254R-D57 WKP35S

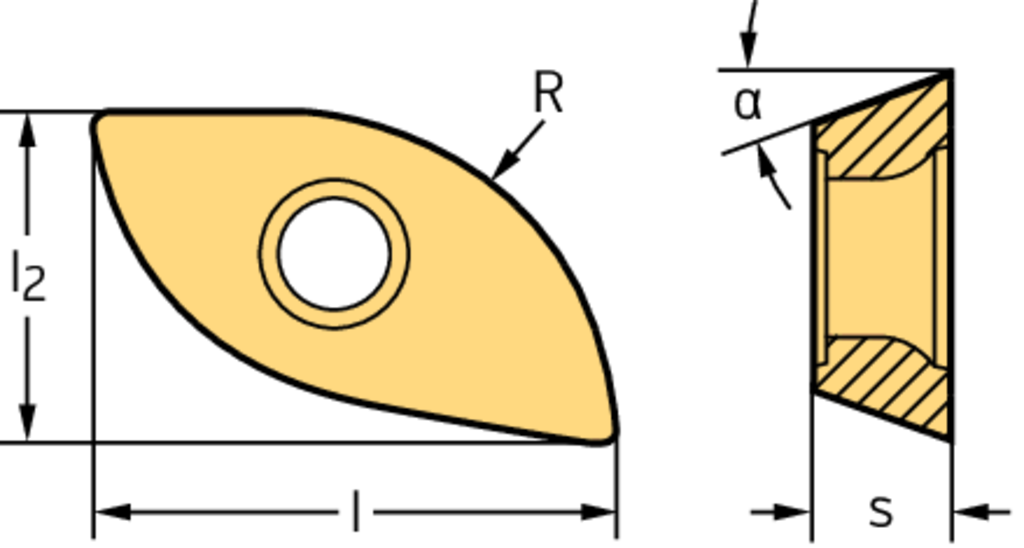

| Описание | Символ | Стойност |
| Indexable insert tolerance class | Tolerance class | G |
| Number of cutting edges | Number of cutting edges | 2 |
| Cutting edge length | l | 39,95 mm |
| Insert thickness | s | 9,39 mm |
| Clearance angle major | α | 15 Deg |
| Corner radius | r | 25,4 mm |
Други размери
