Shank tool – Rigid clamping DVVN
• Walter Turn
• metric
• Square shank
• κ=72,5°
• neutral
• 32x25mm
• rhombic insert
• VN .. 1604 ..
Shank tool – Rigid clamping DVVNN3225P16

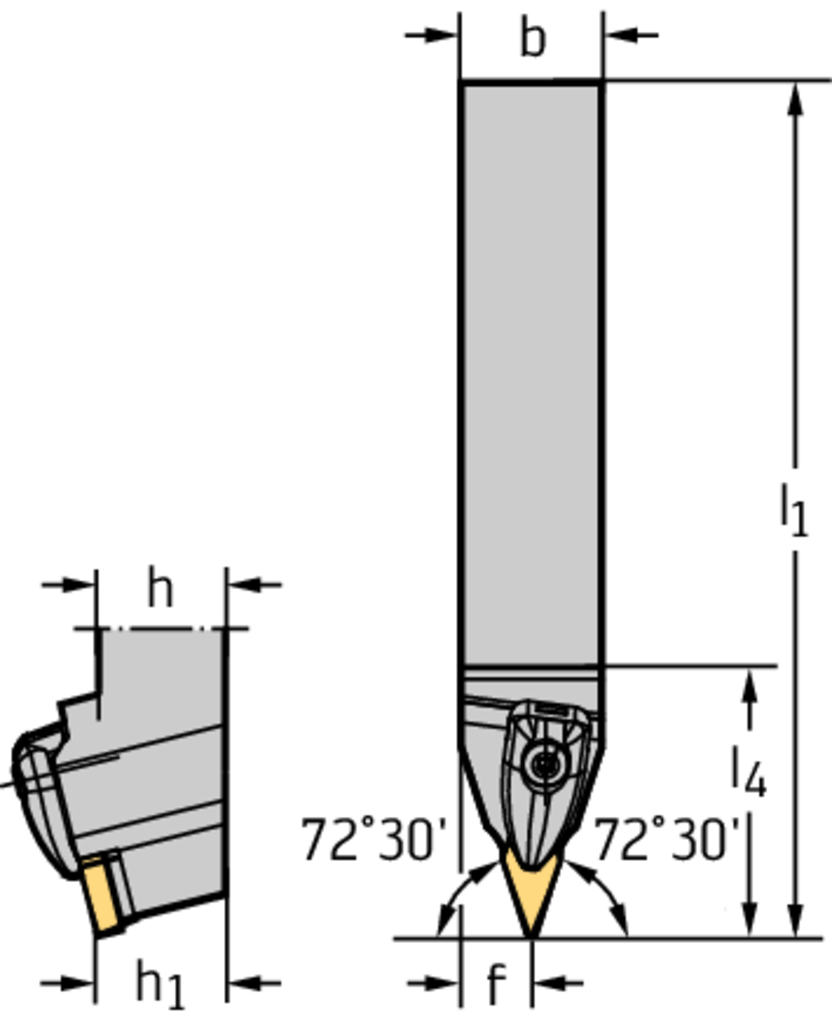

| Описание | Символ | Стойност |
| Shank height | h = h 1 | 32 mm |
| Shank width | b | 25 mm |
| Functional width | f | 13,1 mm |
| Functional length | l 1 | 170 mm |
| Maximum projection length | l 4 | 47,8 mm |
| Orthogonal rake angle | γ | -4 Deg |
| Inclination angle | λ s | -13 Deg |
Други размери
