Shank tool – Rigid clamping DWLN
• Walter Turn
• metric
• Square shank
• κ=95°
• Right
• 32x32mm
• trigon insert
• WN .. 1006 ..
Shank tool – Rigid clamping DWLNR3232P10

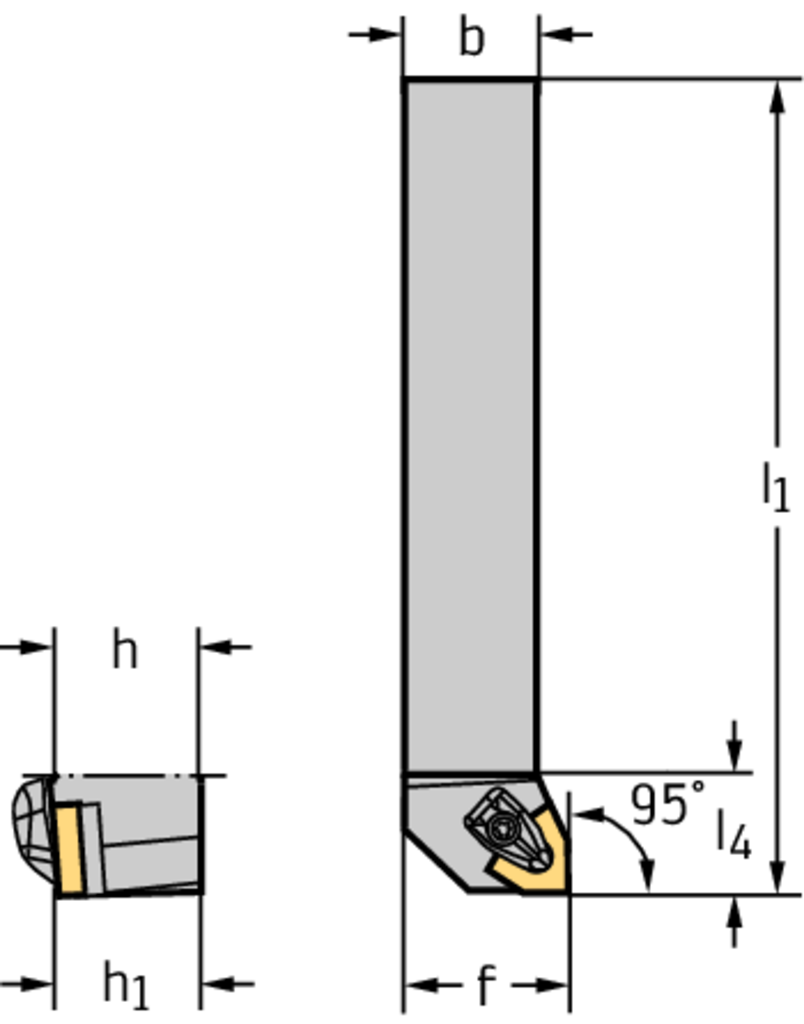

| Описание | Символ | Стойност |
| Shank height | h = h 1 | 32 mm |
| Shank width | b | 32 mm |
| Functional width | f | 40 mm |
| Functional length | l 1 | 170 mm |
| Maximum projection length | l 4 | 41,8 mm |
| Orthogonal rake angle | γ | -6 Deg |
| Inclination angle | λ s | -6 Deg |
