Copy milling cutters with round inserts F2231
• DIN 1835 B shank
• metric
• RD .. 1605 ..
• Dc=16mm
• Z=2

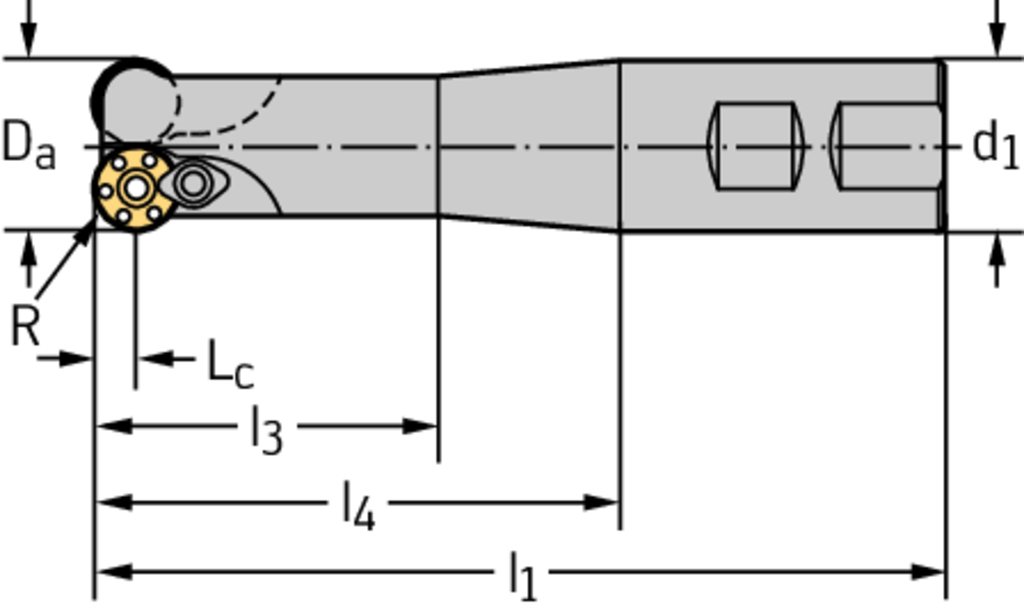

Copy milling cutters with round inserts F2231.W.032.Z02.08.L
| Описание | Символ | Стойност |
| Corner radius | r | 8 mm |
| Maximum cutting diameter | D a | 32 mm |
| Shank diameter | d 1 | 32 mm |
| Functional length | l 4 | 99 mm |
| Cutting edge length | L c | 8 mm |
| Useable length | l 3 | 63 mm |
| Overall length | l 1 | 160 mm |
| Number of teeth | Z | 2 |
| weight of item | 0,8 kg | |
| Number of indexable inserts | No. of indexable inserts | 2 |
Други размери
