HSS-E machine taps
• Paradur Ti
• ≤2xD
• UNC/3B
• ANSI B94.9
• right hand flute 15°
• Suitable for blind hole
• VAP
• UNC 3/8-16
• P=16
HSS-E machine taps A22406S-UNC3/8

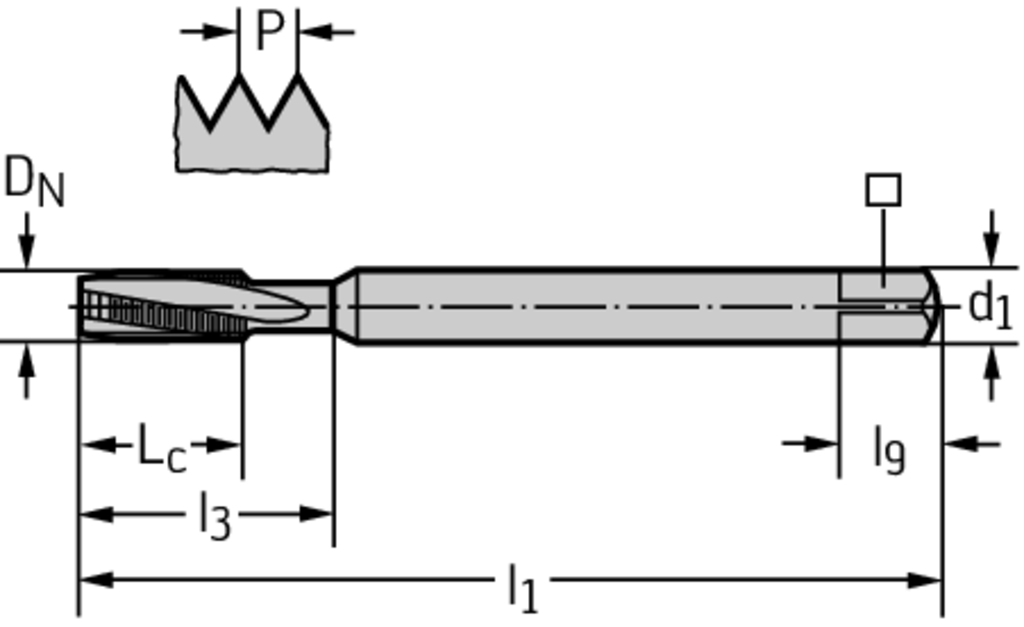

| Описание | Символ | Стойност |
| Thread size | D N | 0,375 inch |
| Functional length | l 1 | 2,937 inch |
| Cutting edge length | L c | 0,748 inch |
| Useable length | l 3 | 1,398 inch |
| connection diameter | d 1 | 0,381 inch |
| clamping width | ⃞ | 0,286 inch |
| Driving square length | l 9 | 0,437 inch |
| Number of grooves | N | 3 |
