HSS-E machine taps
• Short Chip HT
• ≤3,5xD
• MF/6HX
• DIN 376
• right hand flute 15°
• Suitable for blind hole
• THL
• MF 12x1.5
• P=1,5mm
HSS-E machine taps 21460T2-M12X1.5

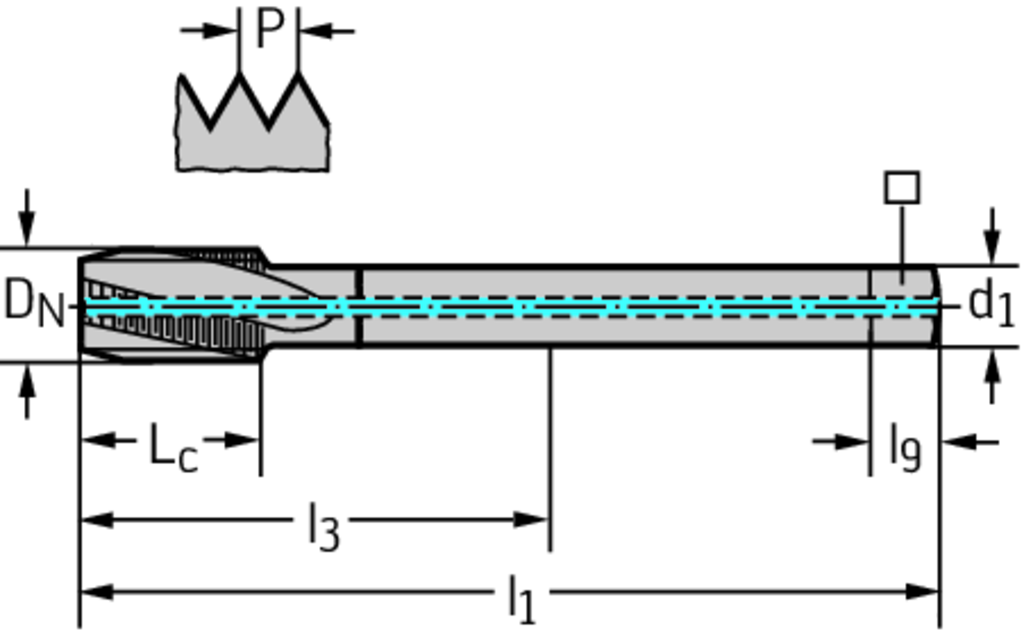

| Описание | Символ | Стойност |
| Thread size | D N | MF 12x1.5 |
| Thread pitch | P | 1,5 mm |
| Functional length | l 1 | 100 mm |
| Cutting edge length | L c | 13 mm |
| Useable length | l 3 | 58 mm |
| connection diameter | d 1 | 9 mm |
| clamping width | ⃞ | 7 mm |
| Driving square length | l 9 | 10 mm |
| Number of grooves | N | 3 |
