HSS-E machine taps
• Paradur Xpert P
• ≤3xD
• M/6H
• ~DIN 376 L
• right hand flute 45°
• Suitable for blind hole
• M 20
• P=2,5mm
HSS-E machine taps P205683-M20

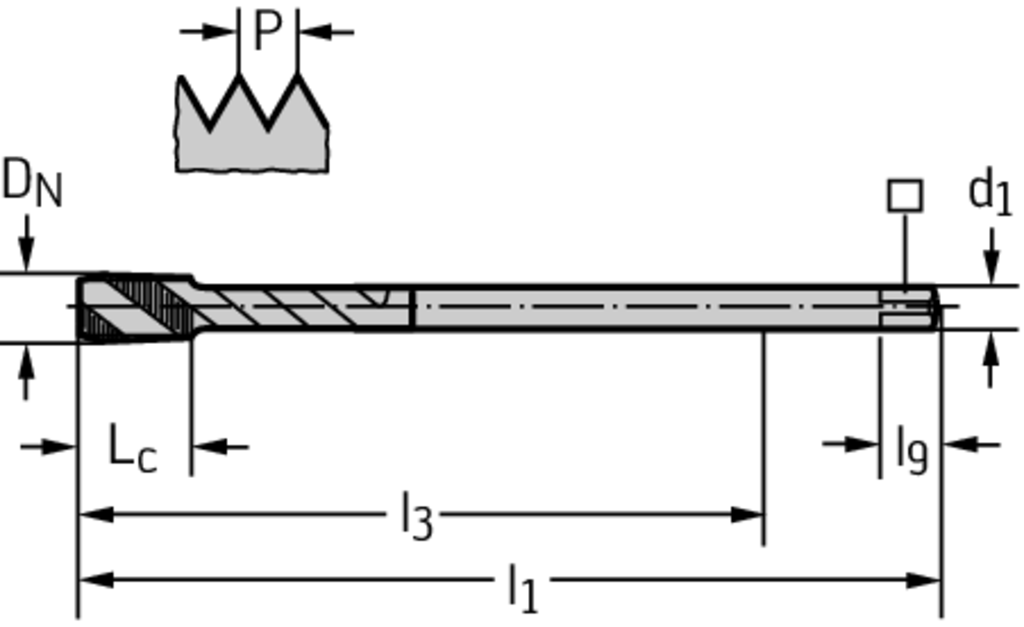

| Описание | Символ | Стойност |
| Thread size | D N | M 20 |
| Thread pitch | P | 2,5 mm |
| Functional length | l 1 | 224 mm |
| Cutting edge length | L c | 25 mm |
| Useable length | l 3 | 179 mm |
| connection diameter | d 1 | 16 mm |
| clamping width | ⃞ | 12 mm |
| Driving square length | l 9 | 15 mm |
| Number of grooves | N | 4 |
