HSS-E machine taps
• Prototex Xpert P
• ≤3xD
• MF/6H
• DIN 374
• Suitable for through hole
• MF 20x1.5
• P=1,5mm

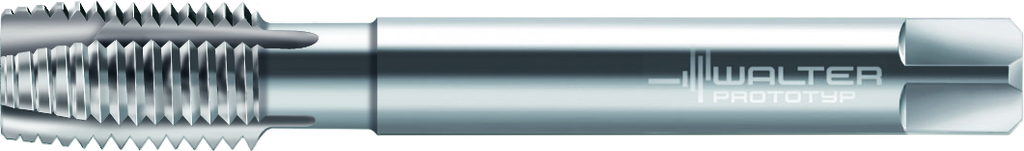

HSS-E machine taps P21360-M20X1.5
| Описание | Символ | Стойност |
| Thread size | D N | MF 20x1.5 |
| Thread pitch | P | 1,5 mm |
| Overall length | l 1 | 125 mm |
| Cutting edge length | L c | 24 mm |
| Useable length | l 3 | 80 mm |
| Shank diameter | d 1 | 16 mm |
| clamping width | ⃞ | 12 mm |
| Driving square length | l 9 | 15 mm |
| Number of grooves | N | 4 |
