HSS-E PM machine taps
• Paradur Eco CI
• ≤3xD
• UNF/2B
• DIN 2184-1
• neutral (straight) flute 0°
• Suitable for blind hole
• Suitable for through hole
• NID
• UNF 5/8-18
• P=18
HSS-E PM machine taps E23364-UNF5/8

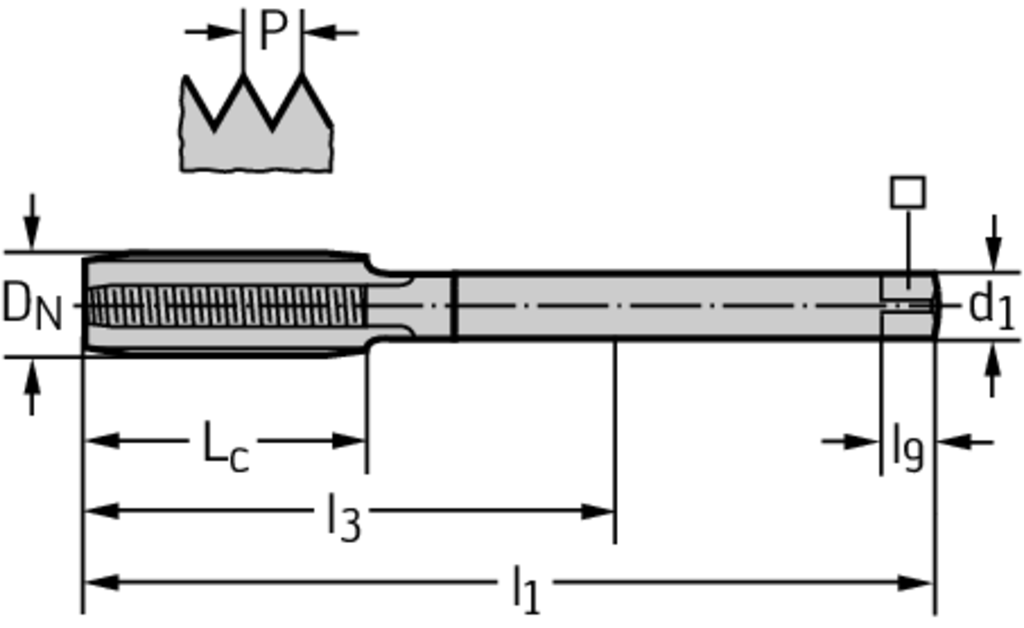

| Описание | Символ | Стойност |
| Thread size | D N | 15,875 mm |
| Functional length | l 1 | 100 mm |
| Cutting edge length | L c | 21 mm |
| Useable length | l 3 | 58 mm |
| connection diameter | d 1 | 12 mm |
| clamping width | ⃞ | 9 mm |
| Driving square length | l 9 | 12 mm |
| Number of grooves | N | 4 |
