Insert drills B4214
• Xtratec
• 4xD
• Parallel shank with flat
• inch
• Dc=33,3mm
Insert drills B4214 B4214.UF31.333.Z1.133R-5

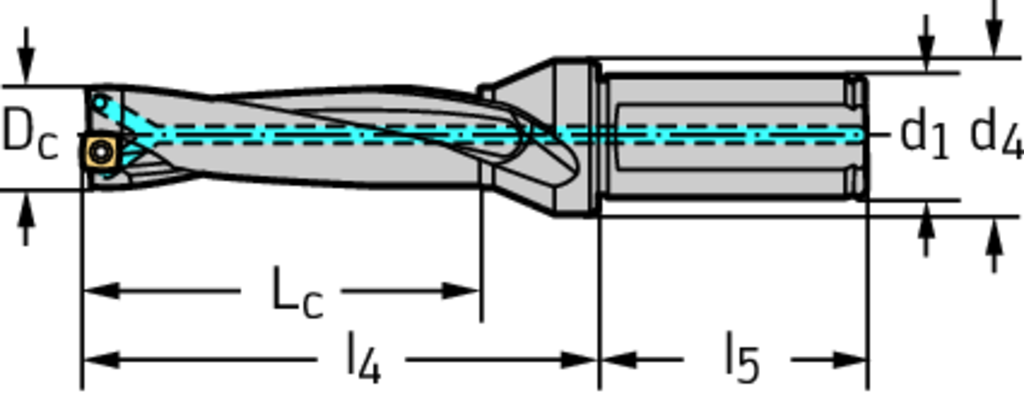

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 1,312 inch |
| Cutting edge length | L c | 5,236 inch |
| Maximum projection length | l 4 | 6,38 inch |
| Clamping length | l 5 | 2,362 inch |
| connection diameter | d 1 | 1,25 inch |
| Flange diameter | d 4 | 1,575 inch |
| weight of item | 1,14 lbs | |
| Number of indexable inserts | No. of indexable inserts | 1 |
