Solid carbide shoulder milling cutters AH3023418
• Protostar
• Parallel shank
• inch
• flute helix angle 45°
• Type N 45, extra long
• centre cutting capability
• TAX
• Dc=7,94mm
• Z=4
Solid carbide shoulder milling cutters AH3023418-5/16
Категория:
Монолитни фрези, твърдосплавни
Код:
5543414
Производител:
Walter Prototyp
На склад:
Не е налично

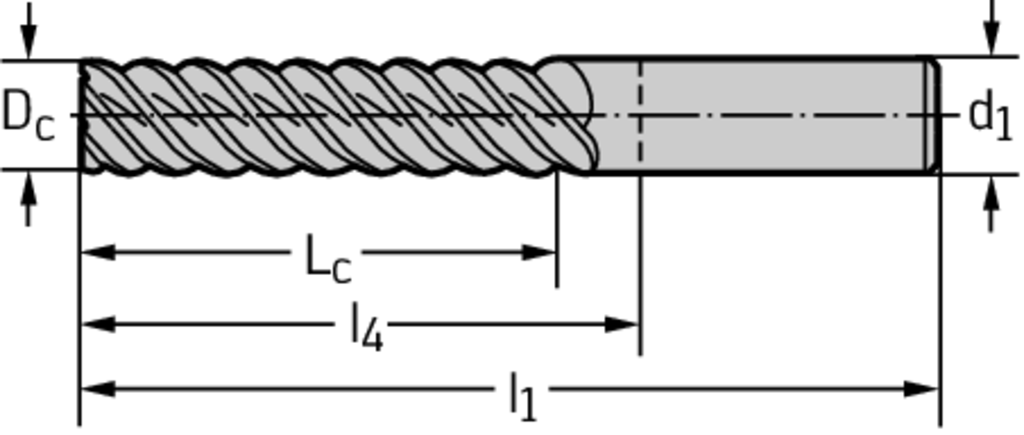

| Описание | Символ | Стойност |
| Cutting edge diameter | D c | 7,94 mm |
| Cutting edge length | L c | 28,58 mm |
| Useable length | l 3 | 35,164 mm |
| Overall length | l 1 | 76,2 mm |
| Functional length | l 4 | 37,03 mm |
| Shank diameter | d 1 | 9,525 mm |
| Number of teeth | Z | 4 |
