Тв.фреза H8015828-10-0.3-35 H8015828-10-0.3-35

Solid carbide shoulder/slot mills H8015828

• Protostar ULTRA

• DIN 6535 HA shank

• metric

• flute helix angle 30°

• Long reach

• Type HSC 30

• centre cutting capability

• TAX

• Dc=10mm

• R=0,3mm

• Z=4

Solid carbide shoulder/slot mills H8015828-10-0.3-35

Категория: Монолитни фрези, твърдосплавни

Код: 5150877

Производител: Walter Prototyp

На склад: Не е налично

Направи запитване

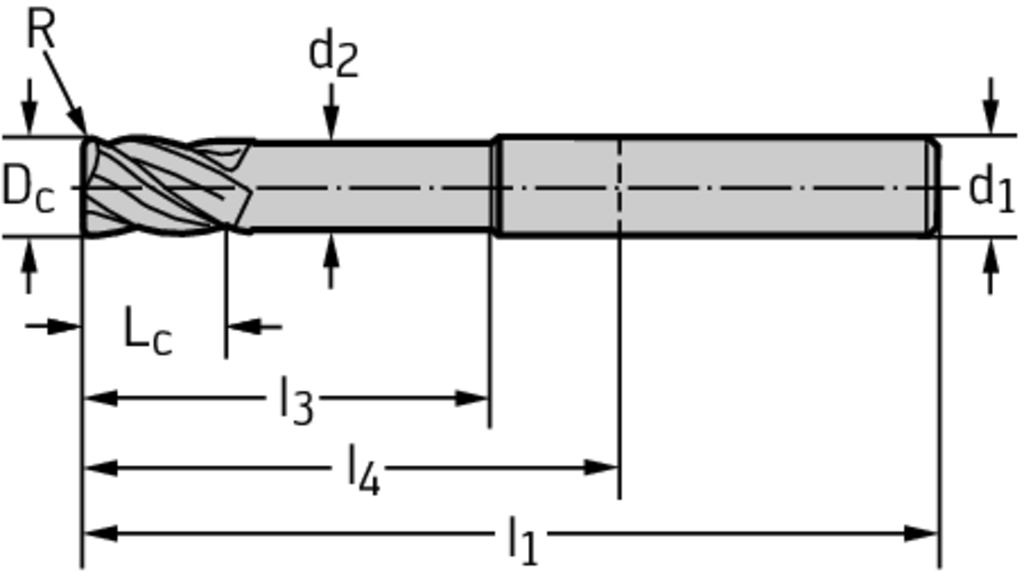

Описание	Символ	Стойност
Cutting edge diameter	D c	10 mm
Corner radius	r	0,3 mm
Cutting edge length	L c	10 mm
Useable length	l 3	35 mm
Neck diameter	d 2	9,9 mm
Overall length	l 1	100 mm
Functional length	l 4	60 mm
Shank diameter	d 1	10 mm
Number of teeth	Z	4

(0)

Направи запитване
