HSS-E machine taps
• Paradur Synch.
• ≤2,5xD
• M/6HX
• ~DIN 376
• right hand flute 40°
• Suitable for blind hole
• THL
• M 16
• P=2mm
HSS-E machine taps S2056302-M16

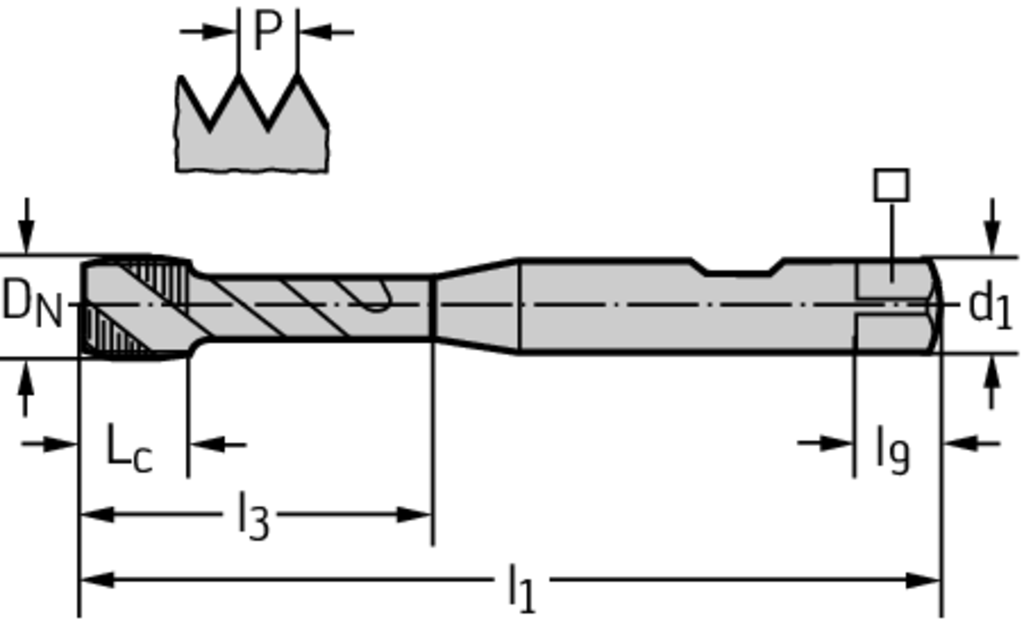

| Описание | Символ | Стойност |
| Thread size | D N | M 16 |
| Thread pitch | P | 2 mm |
| Functional length | l 1 | 110 mm |
| Cutting edge length | L c | 21 mm |
| Useable length | l 3 | 55 mm |
| connection diameter | d 1 | 16 mm |
| clamping width | ⃞ | 12 mm |
| Driving square length | l 9 | 15 mm |
| Number of grooves | N | 4 |
