HSS-E machine taps
• Prototex Synch.
• ≤3xD
• M/6HX
• ~DIN 376
• THL
• Suitable for through hole
• M 12
• P=1,75mm
HSS-E machine taps S2026302-M12

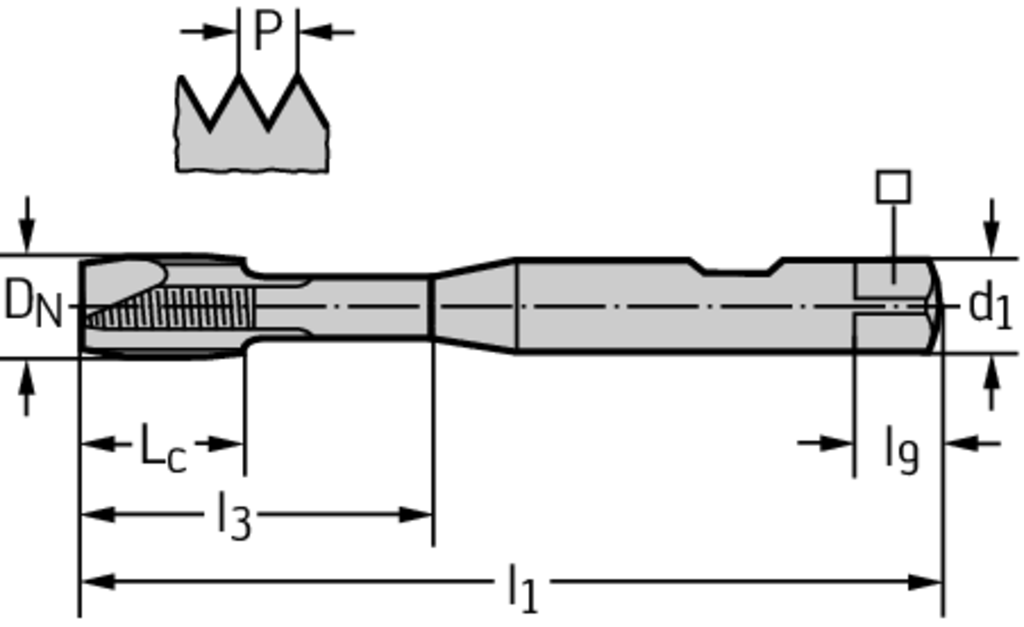

| Описание | Символ | Стойност |
| Thread size | D N | M 12 |
| Thread pitch | P | 1,75 mm |
| Overall length | l 1 | 110 mm |
| Cutting edge length | L c | 17,5 mm |
| Useable length | l 3 | 68 mm |
| Shank diameter | d 1 | 12 mm |
| clamping width | ⃞ | 9 mm |
| Driving square length | l 9 | 12 mm |
| Number of grooves | N | 3 |
