HSS-E machine taps
• Paradur H
• NPTF/NORMAL
• PWZ-NORM
• Suitable for blind hole
• Suitable for through hole
• Dn=16,752mm
HSS-E machine taps 26167-NPTF3/8

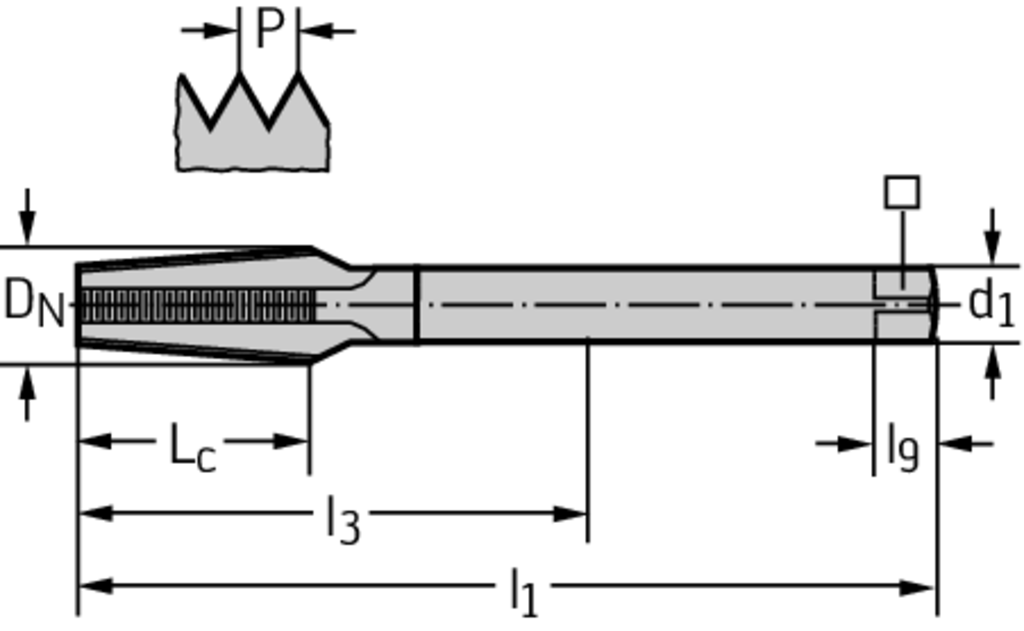

| Описание | Символ | Стойност |
| Thread size | D N | 16,752 mm |
| threads per inch | Threads per inch | 18 |
| Functional length | l 1 | 110 mm |
| Cutting edge length | L c | 20 mm |
| Useable length | l 3 | 65 mm |
| connection diameter | d 1 | 16 mm |
| clamping width | ⃞ | 12 mm |
| Driving square length | l 9 | 12 mm |
| Number of grooves | N | 4 |
Други размери
