HSS-E PM machine taps
• Paradur Ti
• ≤2xD
• MF/6HX
• DIN 374
• right hand flute 15°
• Suitable for blind hole
• MF 10x1.25
• P=1,25mm
HSS-E PM machine taps 21466-M10X1.25

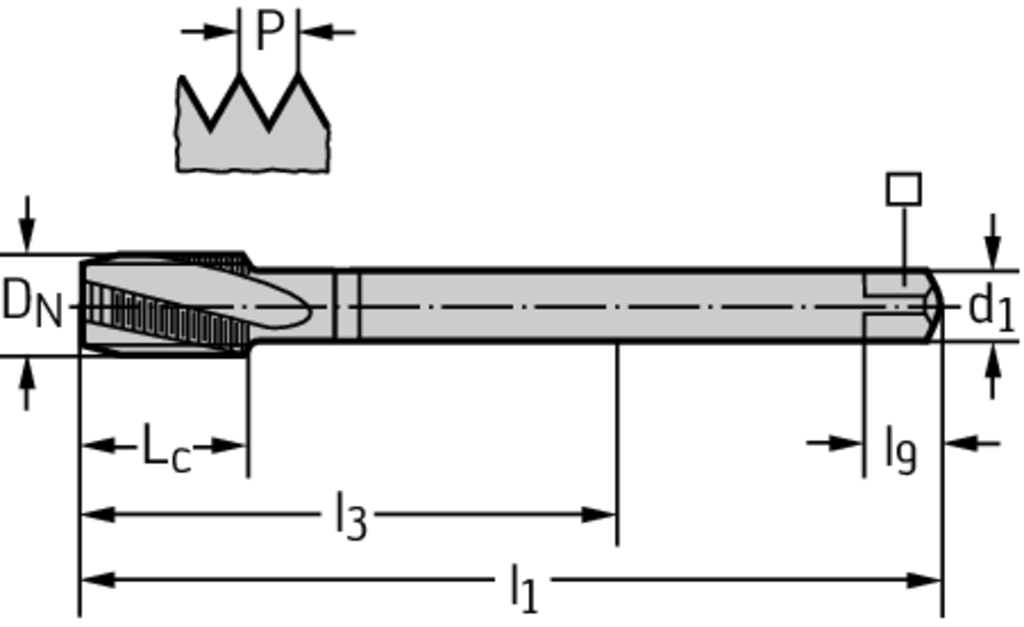

| Описание | Символ | Стойност |
| Thread size | D N | MF 10x1.25 |
| Thread pitch | P | 1,25 mm |
| Functional length | l 1 | 100 mm |
| Cutting edge length | L c | 20 mm |
| Useable length | l 3 | 77 mm |
| connection diameter | d 1 | 7 mm |
| clamping width | ⃞ | 5,5 mm |
| Driving square length | l 9 | 8 mm |
| Number of grooves | N | 3 |
