HSS-E PM machine taps
• Paradur Ni 10
• ≤1,5xD
• MF/6HX
• ~DIN 371
• right hand flute 10°
• Suitable for blind hole
• MF 8x1
• P=1mm
HSS-E PM machine taps 214101-M8X1

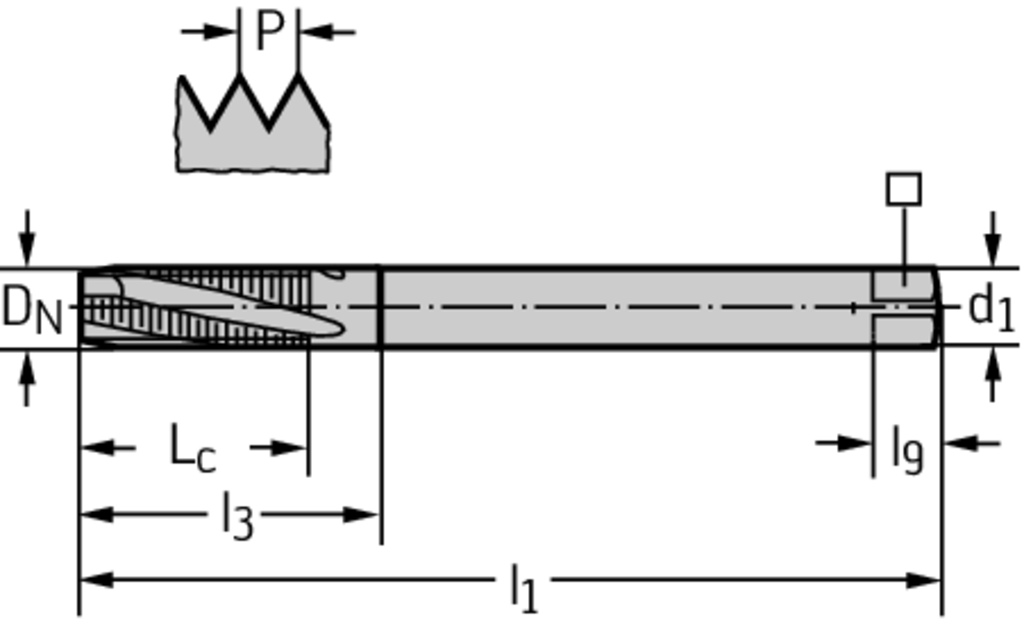

| Описание | Символ | Стойност |
| Thread size | D N | MF 8x1 |
| Thread pitch | P | 1 mm |
| Functional length | l 1 | 90 mm |
| Cutting edge length | L c | 20 mm |
| Useable length | l 3 | 66 mm |
| connection diameter | d 1 | 8 mm |
| clamping width | ⃞ | 6,2 mm |
| Driving square length | l 9 | 9 mm |
| Number of grooves | N | 3 |
