HSS-E machine taps
• Paradur H
• ≤1,5xD
• MF/6H
• DIN 374
• neutral (straight) flute 0°
• Suitable for blind hole
• Suitable for through hole
• MF 4x0.5
• P=0,5mm
HSS-E machine taps 21368-M4X0.5

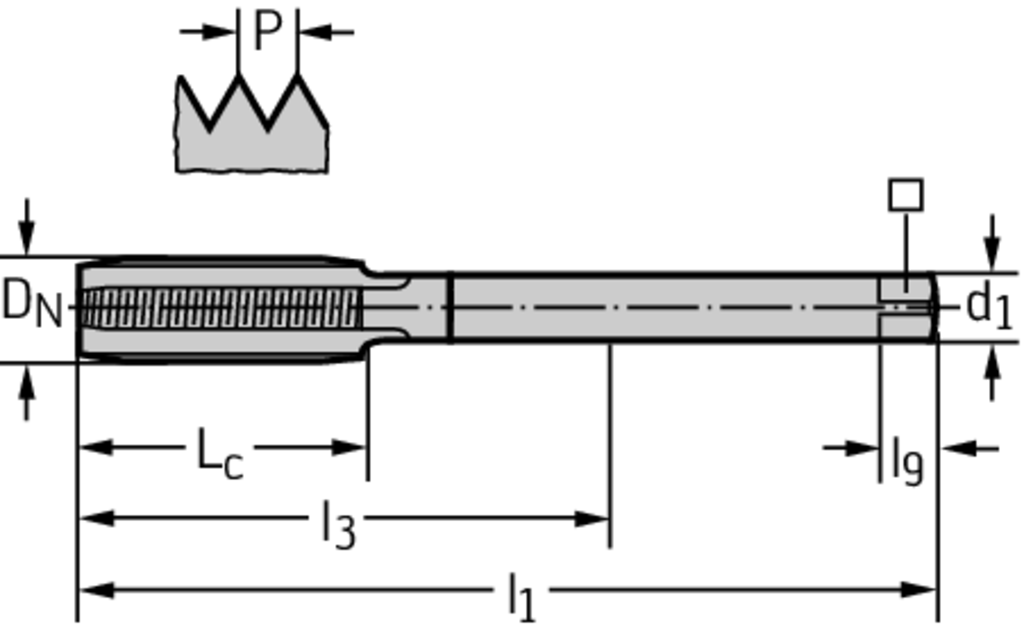

| Описание | Символ | Стойност |
| Thread size | D N | MF 4x0.5 |
| Thread pitch | P | 0,5 mm |
| Functional length | l 1 | 63 mm |
| Cutting edge length | L c | 12 mm |
| Useable length | l 3 | 43 mm |
| connection diameter | d 1 | 2,8 mm |
| clamping width | ⃞ | 2,1 mm |
| Driving square length | l 9 | 5 mm |
| Number of grooves | N | 3 |
