HSS-E PM machine taps
• Paradur Ti
• ≤2xD
• M/6HX
• ~DIN 371
• right hand flute 15°
• Suitable for blind hole
• TICN
• M 5
• P=0,8mm
HSS-E PM machine taps 2041606-M5

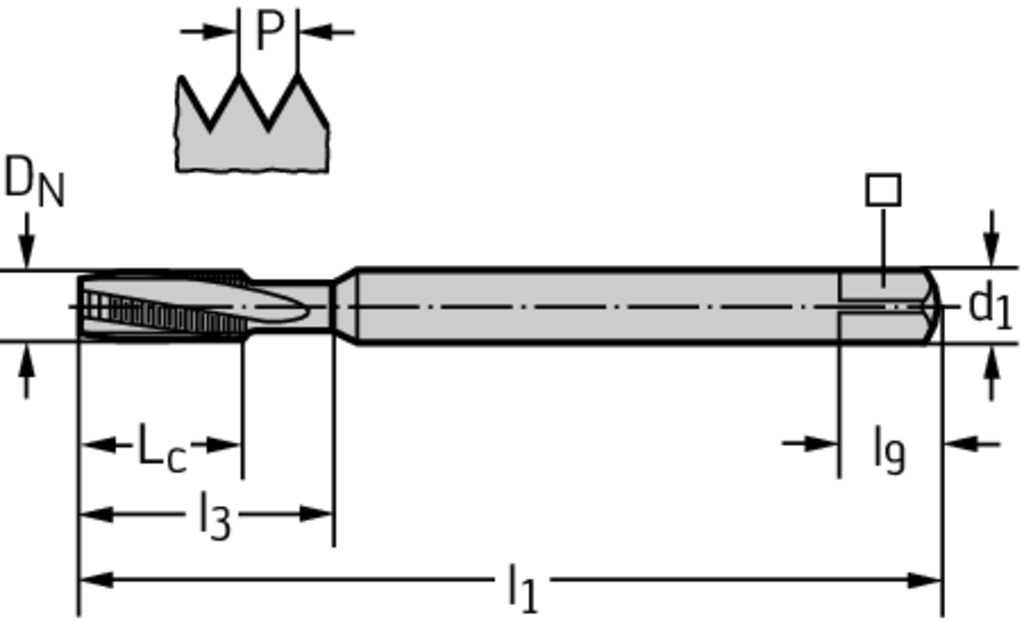

| Описание | Символ | Стойност |
| Thread size | D N | M 5 |
| Thread pitch | P | 0,8 mm |
| Functional length | l 1 | 70 mm |
| Cutting edge length | L c | 16 mm |
| Useable length | l 3 | 16 mm |
| connection diameter | d 1 | 6 mm |
| clamping width | ⃞ | 4,9 mm |
| Driving square length | l 9 | 8 mm |
| Number of grooves | N | 3 |
