HSS-E machine taps
• Paradur H
• ≤1,5xD
• M/6H
• DIN 371
• neutral (straight) flute 0°
• Suitable for blind hole
• Suitable for through hole
• M 1.7
• P=0,35mm
HSS-E machine taps 20311-M1.7

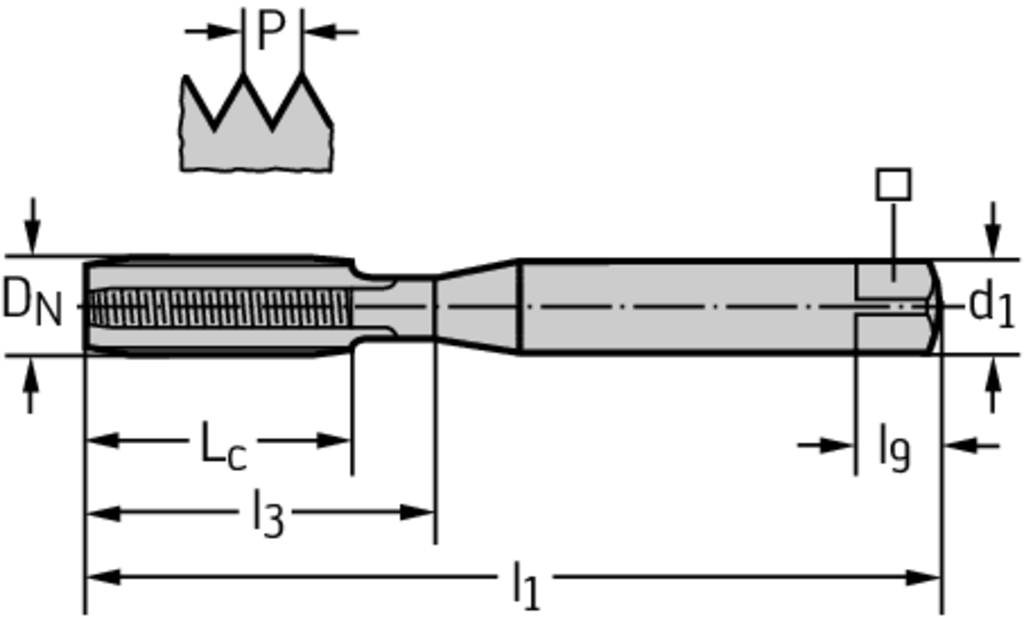

| Описание | Символ | Стойност |
| Thread size | D N | M 1.7 |
| Thread pitch | P | 0,35 mm |
| Functional length | l 1 | 40 mm |
| Cutting edge length | L c | 7 mm |
| Useable length | l 3 | 7 mm |
| connection diameter | d 1 | 2,5 mm |
| clamping width | ⃞ | 2,1 mm |
| Driving square length | l 9 | 5 mm |
| Number of grooves | N | 3 |
