HSS-E taps, short
• KMB Ms
• ≤3xD
• M/6H
• DIN 2184-2
• neutral (straight) flute 0°
• Suitable for blind hole
• Suitable for through hole
• M 2
• P=0,4mm
HSS-E taps, short 20165-M2

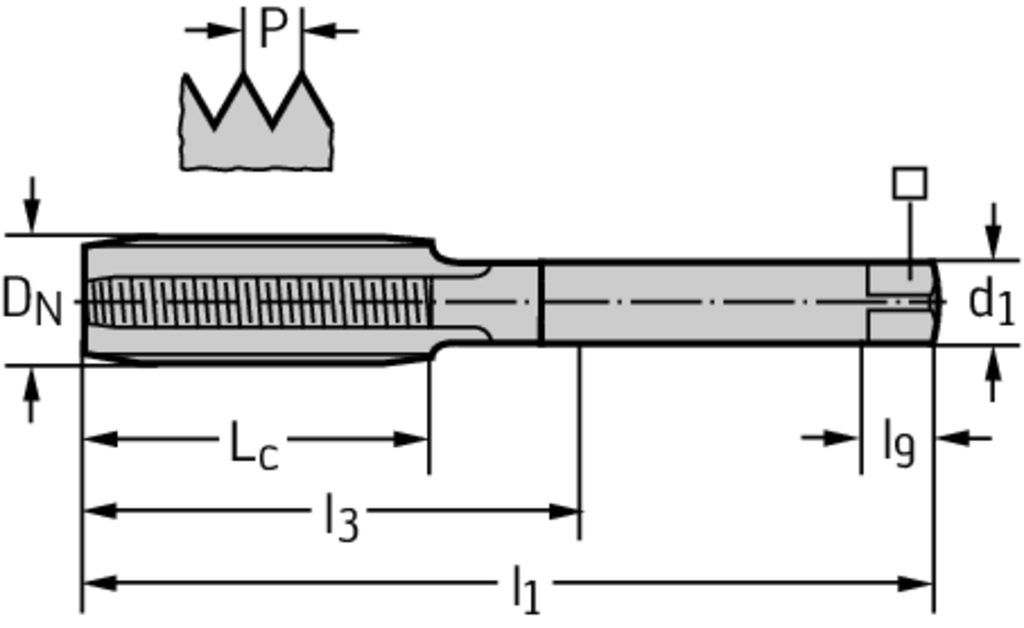

| Описание | Символ | Стойност |
| Thread size | D N | M 2 |
| Thread pitch | P | 0,4 mm |
| Functional length | l 1 | 36 mm |
| Cutting edge length | L c | 8 mm |
| Useable length | l 3 | 8 mm |
| connection diameter | d 1 | 2,8 mm |
| clamping width | ⃞ | 2,1 mm |
| Driving square length | l 9 | 5 mm |
| Number of grooves | N | 3 |
